ברזים
116 | Cold & Hot Water Monobloc Mixer with Handles, Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Maximum temperature: 65° C
Fluid identification: EN 13792
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Two AISI 304 braided flexible hoses with female thread ISO 228 G3/8"
Main materials
Tap body: Brass
Headwork: Brass, elastomer - brass sealing by compression
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
116/190002 | Cold & Hot Water Monobloc Mixer with Levers Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Maximum temperature: 65° C
Fluid identification: EN 13792
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Two AISI 304 braided flexible hoses with female thread ISO 228 G3/8"
Main materials
Tap body: Brass
Headwork: Brass, 1/4 turn ceramic sealing
Lever: Plasticized aluminum, green colour RAL 6005
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
312 | Cold & Hot Water Mixer with Single Lever Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 5 bar
Maximum temperature: 65° C
Design: EN 200
Nozzle: DIN 12898
Inlet: Two AISI 304 braided flexible hoses with female thread ISO 228 G3/8"
Main materials
Tap body: Brass
Cartridge: Ceramic sealing. 25° opening angle, 90° mixture angle.
Lever: Plasticized brass
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
320 | Cold & Hot Water Mixer with Pull-out Shower and Single Lever Bench mounted , Aerator
TECHNICAL FEATURES
Media: Water
Maximum pressure: 5 bar
Maximum temperature: 65° C
Design: EN 200
Aerator: UNE-EN 246
Inlet: Two AISI 304 braided flexible hoses with female thread ISO 228 G3/8"
Main materials
Tap body: Brass
Cartridge: Ceramic sealing. 25° opening angle, 90° mixture angle.
Lever: Plasticized brass
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
726 | Wall mounted PP outlet for Demin Water, removable nozzle, inlet G1/4" x 12mm, Standout 90
TECHNICAL FEATURES
Media: Demin Water
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: 1/4 Female Thread
Main materials
Outlet body: Polypropylene
Removable nozzle: Polypropylene, light grey colour RAL 7035
1711 | Front control Water Valve, Inlet / Outlet G3/8", Wall 12 mm
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Maximum temperature: 65° C
Fluid identification: EN 13792
Design: DIN 12918-1
Inlet / Outlet: BSP 3/8 Female Thread
Main materials
Tap body: Brass
Headwork: Brass, elastomer - brass sealing by compression
Handle: ABS
Flange: ABS, white colour
1713 | Front control Gas Valve, Inlet / outlet G3/8", Wall 12 mm
TECHNICAL FEATURES
Media: Burning Gas
Maximum pressure: 0.2 bar
Fluid identification: EN 13792
Design: DIN 12918-2
Inlet / Outlet: BSP 3/8 Female Thread
Main materials
Tap body: Brass
Headwork: Brass, "push - 1/4 turn" ceramic sealing
Handle: ABS
Flange: ABS, white colour

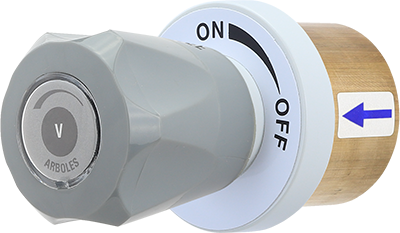

1714 | Front control Vacuum Valve Inlet / outlet G3/8",Wall 12 mm
TECHNICAL FEATURES
Media: Vacuum
Minimum pressure: down to 1 mbar
Fluid identification: EN 13792
Design: DIN 12918-3
Inlet / Outlet: BSP 3/8 Female Thread
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Flange: ABS, white colour
1715 | Front control Compressed Air Valve Inlet / outlet G3/8",Wall 12 mm
TECHNICAL FEATURES
Media: Compressed Air
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Inlet / Outlet: BSP 3/8 Female Thread
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Flange: ABS, white colour
1719 | Front control Demin Water Valve Inlet / outlet G1/4",Wall 12 mm
TECHNICAL FEATURES
Media: Demin Water
Maximum pressure: 4 bar
Maximum temperature: 48° C
Fluid identification: EN 13792
Design: DIN 12918-1
Inlet / Outlet: BSP 1/4 Female Thread
Main materials
Tap body: Polypropylene
Headwork: Plastic, 1/4 turn ceramic sealing
Handle: ABS
Flange: ABS, white colour
6106 | Single Water Tap with Handle, Bench mounted, swivel swanneck, Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Maximum temperature: 65° C
Fluid identification: EN 13792
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G1/2" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, elastomer - brass sealing by compression
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6106 | Single Water Tap with Lever, Bench mounted, swivel swanneck, Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Maximum temperature: 65° C
Fluid identification: EN 13792
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G1/2" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, elastomer - brass sealing by compression
Lever: Plasticized brass
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6299 | Demin Water Tap, Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Demin Water
Maximum pressure: 4 bar
Maximum temperature: 48° C
Fluid identification: EN 13792
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Flexible PE tube with male thread ISO 228 G1/4"
Main materials
Tap body / removable nozzle: Polypropylene
Headwork: Plastic, 1/4 turn ceramic sealing
Handle: ABS
Column: Plasticized brass
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6401 | Vacuum Single Tap Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Vacuum
Minimum pressure: down to 1 mbar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6403 | Vacuum Double Tap, Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Vacuum
Minimum pressure: down to 1 mbar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6501 | Compressed Air Single Tap, Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Compressed Air
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6503 | Compressed Air Double Tap, Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Compressed Air
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6711 | Fixed swanneck for water, Bench mounted, Removable nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6741 | Vacuum Wall Tap Removable Nozzle
TECHNICAL FEATURES
Media: Vacuum
Minimum pressure: down to 1 mbar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6751 | Compressed Air Wall Tap Removable Nozzle
TECHNICAL FEATURES
Media: Compressed Air
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6601(AR) | Argon Single Tap Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Argon
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6601(N2) | Nitrogen Single Tap Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Nitrogen
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6603(AR) | Two way 90º Argon Tap Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Argon
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6603(N2) | Two way 90º Nitrogen Tap Bench mounted, Removable Nozzle
TECHNICAL FEATURES
Media: Nitrogen
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6761(AR) | Argon Wall Tap Removable Nozzle
TECHNICAL FEATURES
Media: Argon
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6761(N2) | Nitrogen Wall Tap Removable Nozzle
TECHNICAL FEATURES
Media: Nitrogen
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
1716(N2) | Front control Nitrogen Valve, Inlet/ Outlet G3/8", Wall 12 mm
TECHNICAL FEATURES
Media: Nitrogen
Maximum pressure: 10 bar
Fluid identification: EN 13792
Design: DIN 12918-3
Inlet / Outlet: BSP 3/8 Female Thread
Main materials
Tap body: Brass
Headwork: Brass, PTFE / brass sealing
Handle: ABS
Flange: ABS, white colour
6716(AR) | Argon Outlet S75 Removable Nozzle
TECHNICAL FEATURES
Media: Argon
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716(CA) | Compressed Air Outlet S75 Removable Nozzle
TECHNICAL FEATURES
Media: Compressed Air
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716(N2) | Nitrogen Outlet S75 Removable Nozzle
TECHNICAL FEATURES
Media: Nitrogen
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716(V) | Vacuum Outlet S75 Removable Nozzle
TECHNICAL FEATURES
Media: Vacuum
Maximum pressure: down to 1 mbar
Design: DIN 12918-3
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6714 | Burning Gases Hood Outlet Nozzle Male Thread 1/2
TECHNICAL FEATURES
Media: Burning Gases
Maximum pressure: 0,2 bar
Design: DIN 12918
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716 | Water Outlet S90 Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716 | Water Outlet S150 Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716 | Water Outlet S90 (Flow) + Non Return Valve Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
6716 | Water Outlet S90 (Return) + Non Return Valve Removable Nozzle
TECHNICAL FEATURES
Media: Water
Maximum pressure: 10 bar
Design: DIN 12918-1
Nozzle: DIN 12898
Inlet: Male thread ISO 228 G3/8" x 60 mm
Main materials
Outlet body: Brass
Removable nozzle: Polypropylene, light grey colour RAL 7035
Anticorrosive plastic coating:
Polyamide with a thickness of 250-300 microns, light grey colour RAL 7035
195996 | Copper Tube Outlet L700mm for Burning Gas
TECHNICAL FEATURES
Media: Burning gas
Connections: 1/2" BSP - Elbow 10 x 3/8" BSP
Lenght : 700 mm
Material : Copper tube , brass fittings
195997 | Copper Tube Inlet L1500mm for Burning Gas
TECHNICAL FEATURES
Media: Burning gas
Connections: 1/2" BSP - 10 x 3/8" BSP
Lenght : 1500 mm
Material : Copper tube , brass fittings
195998 | HDPE Tube Outlet L700mm for Demin Water
TECHNICAL FEATURES
Media: Special water (WDI)
Connections: Elbow Ø10 x BSPT 1/4" - Ø10 Ø10 x BSPT 1/4"
Lenght : 700 mm
Material : PP- HDPE
195999 | HDPE Tube Inlet L1500mm for Demin Water BSP 1/4 Male Thread - BSP 1/2 Female Thread
TECHNICAL FEATURES
Media: Special water (WDI)
Connections: Ø10 x BSP 1/2" Female - Ø10 x BSP 1/4" MALE
Lenght : 1500 mm
Material : PP- HDPE
950988 | Flexible Hose Outlet L700mm for Inert Gases / Water
TECHNICAL FEATURES
Media: Inert Gases / Water
Connections: Elbow 90º BSP 3/8 Female Thread -BSP 3/8 Male Thread
Lenght : 700 mm
Material : Stainless Steel - PEX
950989 | Flexible Hose Inlet L1500mm for Inert Gases / Water
TECHNICAL FEATURES
Media: Inert Gases / Water
Connections: BSP 3/8 Male Thread - BSP 3/8 Female Thread
Lenght : 1500 mm
Material : Stainless Steel - PEX
